Product Description

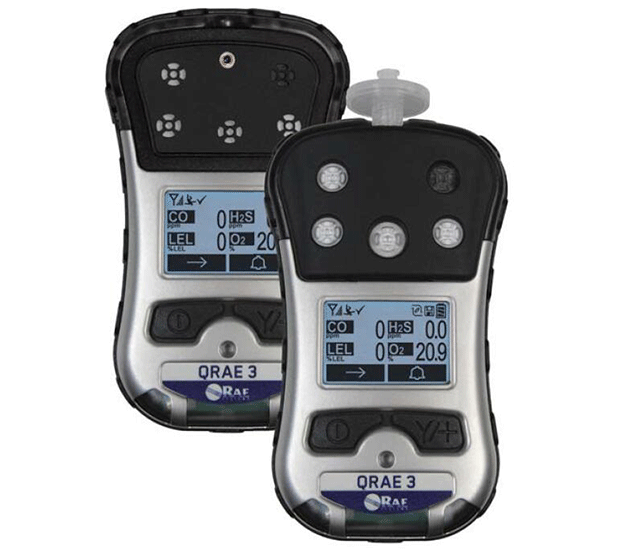

RAE 3 is a wireless compact monitor for one to four gases. The QRAE 3 provides detection and monitoring of Oxygen (O2),

Combustibles, and toxic gases that include Hydrogen Sulfide (H2S), Carbon Monoxide (CO), Sulfur Dioxide (SO2) and Hydrogen Cyanide

(HCN). QRAE 3 can deliver wireless real-time instrument readings and alarm status 24/7. This provides better incident visibility and can

improve response time.

• Man Down Alarm with real-time remote wireless notification1

• Easy maintenance with fieldreplaceable sensors and pump

• Fully automated bump testing and calibration with AutoRAE 2

• Pumped or diffusion models available

• Large graphic display can rotate 180

Applications

Confined space entry and general safety and compliance in:

• Industrial safety

• Oil and gas

• Fireground Toxic Twins detection

• Environmental

• Fire and Emergency response

Specifications

SIZE	Diffusion: 5.6" x 2.2" x 1.5" W(140.8mm x 57.2mm x 42mm)Pumped: 5.7" x 3.2" x 1.7" D(145mm x 82mm x 42mm)
WEIGHT	Diffusion: 12.9 oz (365 g) with Li-Ion battery and cap)Pumped: 14.5 oz (410 g) with Li-Ion battery, cap, and external filter
SENSORS	Li - Ion battery - replaceable sensor(s):• Up to four field - replaceable sensors• Oxygen: Galvanic or Electrochemical• Toxic: Electrochemical for H₂S, CO, SO₂, HCN• Rechargeable Li - Ion battery
BATTERY	14 hours continuous non - wireless, diffusion11 hours continuous wireless, diffusion10 hours continuous non - wireless, pumped8 hours continuous wireless, pumpedNote: All battery specifications at 86°F (20°C); lower temperatures and alarm conditions will affect battery life.
RUNNING TIME	Monochrome graphic display (128 x 60)Display size: 1.57" x 1.06" H (40 x 27mm) with backlightingAutostart or on - demand screen rotation
DISPLAY GRAPHIC	Two - button operation
KEYPAD	Real - time reading of gas concentrationsBattery statusPump status (if equipped with pump)Wireless statusSTEL, TWA, peak, and minimum valuesMan - Down 95dB buzzer (18.7/30 m typical), vibration alarm, and flashing red LED on - screen indication of alarm conditions
DIRECT READOUT	Alarms: Latched, and latching or manual overrideAdditional diagnostic information: Low batteryPump status (if pumped version) and display messageMan - Down Alarm with pre - alarm and real - time remote wireless notification
DATALOGGING	Continuous datalogging (3 months for 4 sensors at 1 - minute intervals, 24/7)User - configurable datalogging intervals (from 1 to 3600 seconds)Data download and instrument set - up via upgrades on PC via Travel ChargeReal - time data and status transmission via built - in RF modem (optional)
DATALOGGING	Meets RISE Systems Dedicated Wireless Network
COMMUNICATION AND DATA DOWNLOAD	Near RISE fame band: 868MHz or 900MHzFCC Part 15, CE ETSI, ANZ
WIRELESS NETWORK	Probe: Vault L.O.S: 650 ft (200 m)Probe Guardian and RISE Link Master: L.O.S: 650 ft (200 m)Probe Guardian and RISE Weak Riser: L.O.S: 330 ft (100 m)
WIRELESS FREQUENCY AND APPROVALS	EMI and ESD test: 100V/m High to 30V/m, no alarmConduct: ±3V
WIRELESS RANGE (TYPICAL)	Pumped: IP - 65Diffusion: IP - 67
EM IMMUNITY	Two - point calibration for zero and span (manual or automatic with AutoRAE 2)
IP RATING	Two - point calibration for zero and span (manual or automatic with AutoRAE 2)
CALIBRATION	Two - point calibration for zero and span (manual or automatic with AutoRAE 2)

NSTRUMENT SPECIFICATIONS

INSTRUMENT SPECIFICATIONS	Built-in pump or diffusion
SAMPLING PUMP	Can sample through tubing up to 98ft (30m)
HAZARDOUS AREA	US and Canada: Class I, Div 1, Groups A,B,C,D and E; Class I, Zone 1, Groups IIC and IIB; Class II, Div 1, Groups F,G; Class III, Div 1Europe: Groups IIA, IIB, IIC T4ATEX/IECEx (TITAN EX only): II 1G Ex ia IIC T4 Ga; II 1D Ex ia IIIC T135°C Da
TEMPERATURE	-4°F to 122°F (-20°C to 50°C) for non-condensing temperature
HUMIDITY	0% to 95% relative humidity (non-condensing)
ATTACHMENTS	Stainless-steel alligator clip or Swivel belt clip (optional)
LANGUAGES	Arabic, Chinese, Czech, Dutch, English, French, Indonesian, Polish, Portuguese, Korean, Norwegian, Persian, Russian, Spanish, and Swedish (Language must be changed through ProRAE Studio II)
WARRANTY	2-year warranty on device3-year warranty on O₂, LEL, CO, H₂S sensors1-year warranty on SO₂, HCN sensors
	Specifications are subject to change.
DEFAULT SENSOR SPECIFICATIONS
GAS MONITOR	Range

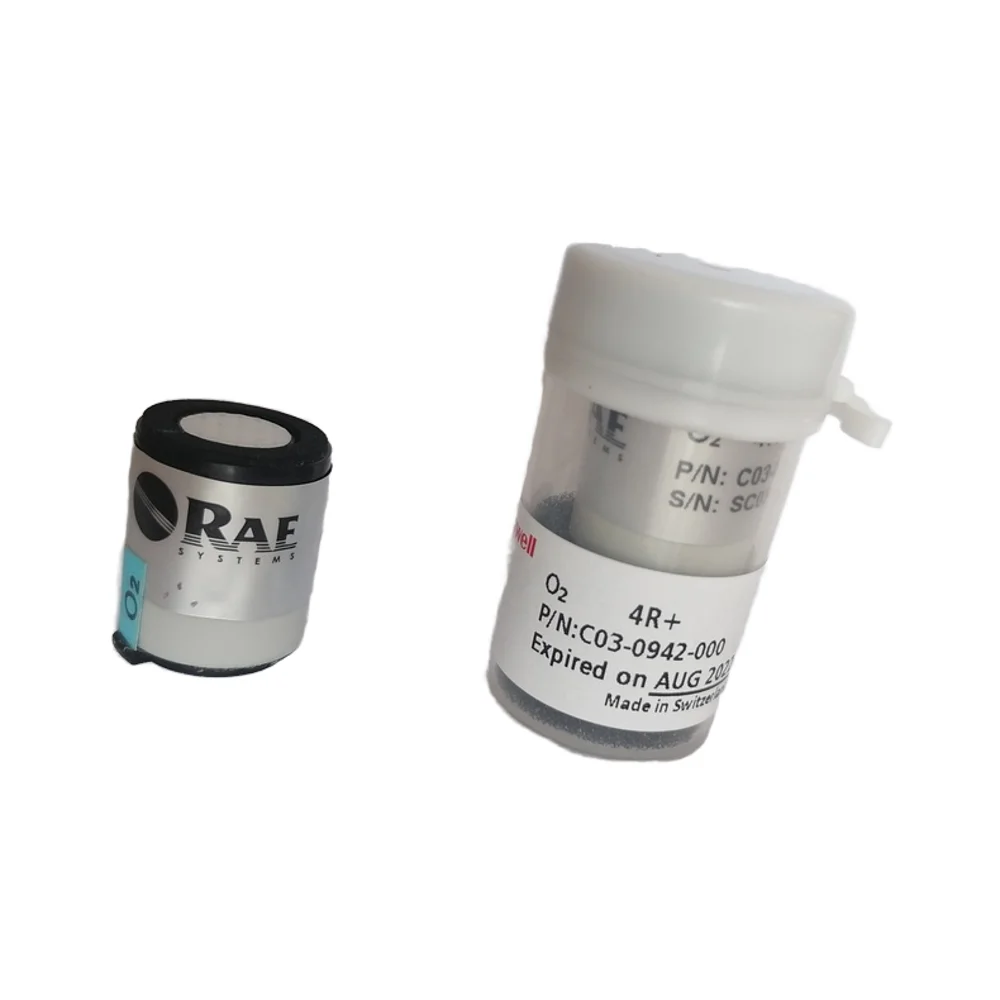

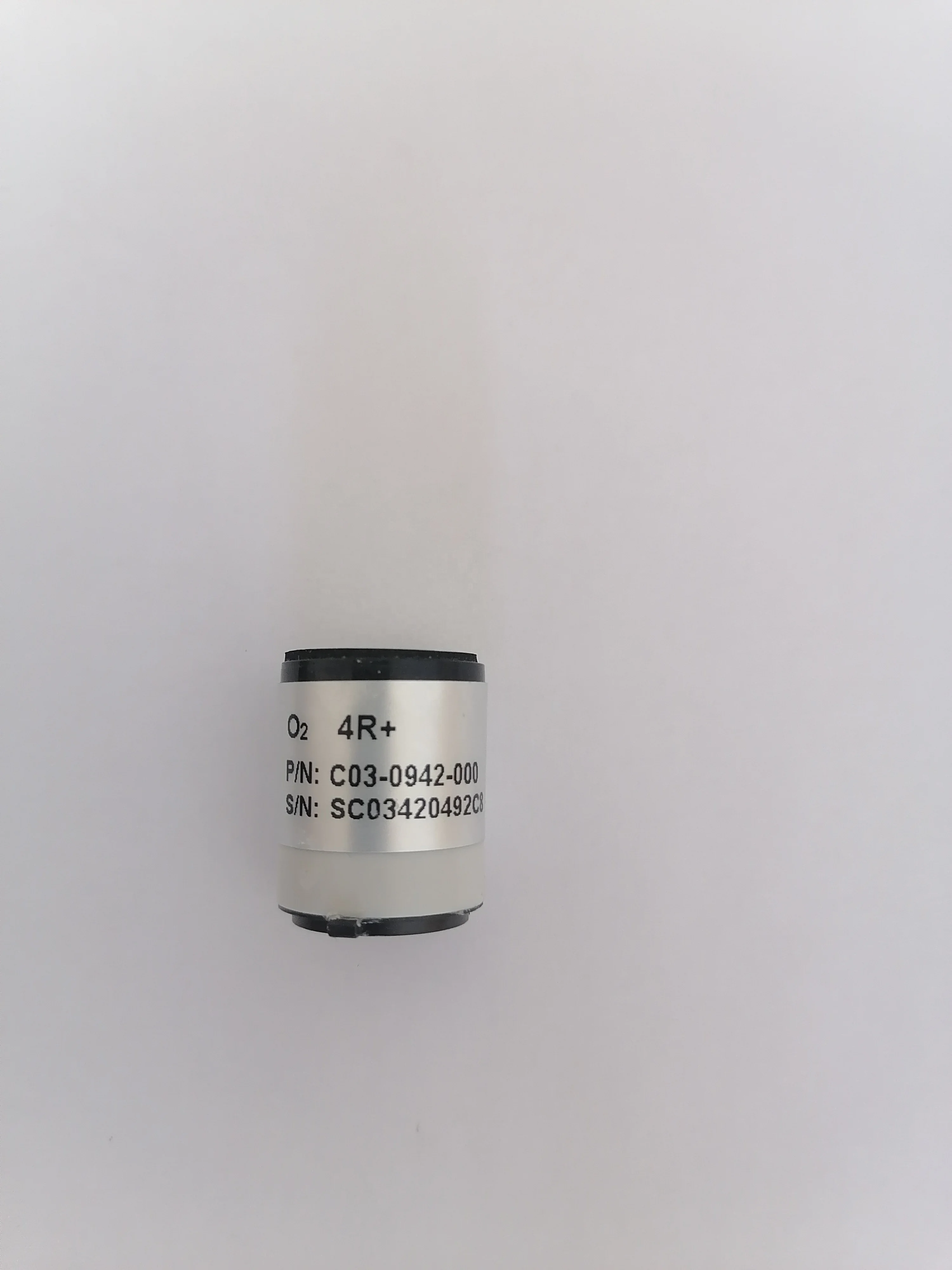

OXYGEN (O₂)	0 to 30.0%
COMBUSTIBLE (LEL)	0 to 100% LEL

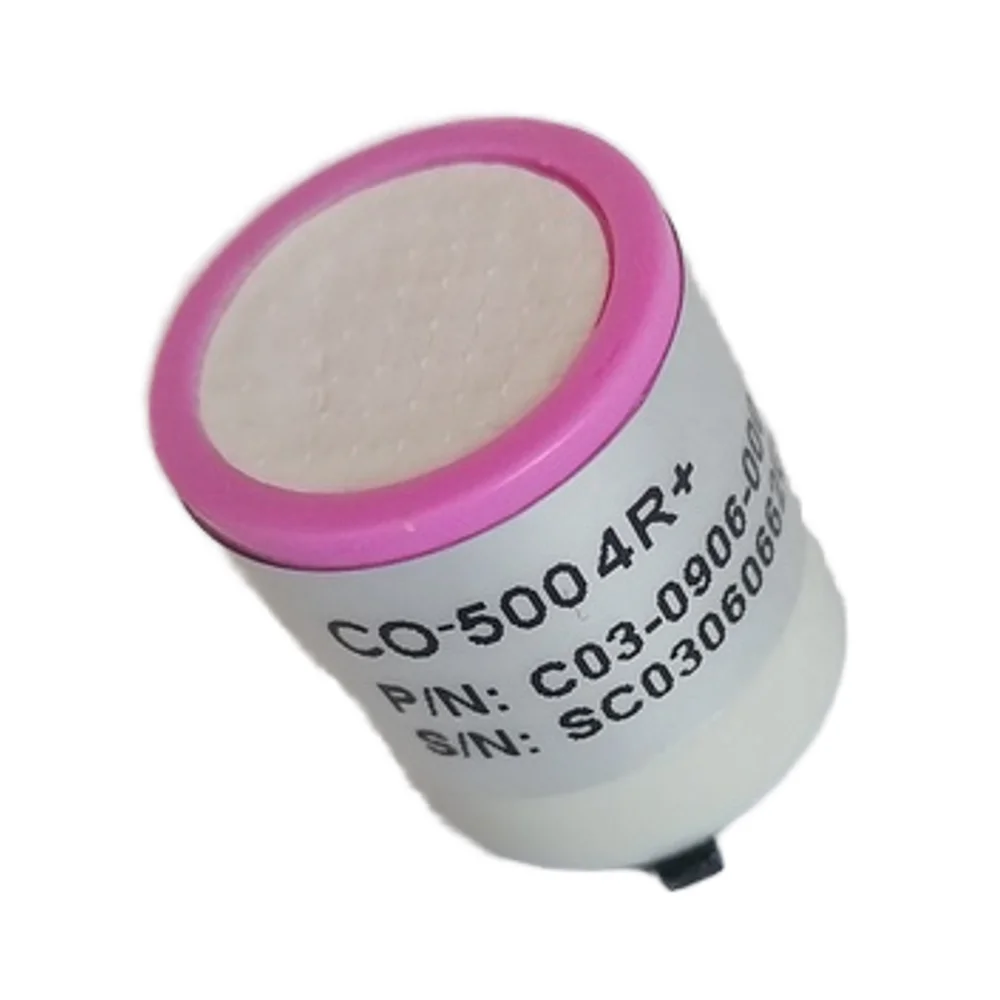

CARBON MONOXIDE (CO)	0 to 500 ppm
HYDROGEN SULFIDE (H₂S)	0 to 100 ppm
SULFUR DIOXIDE (SO₂)	0 to 20 ppm
HYDROGEN CYANIDE (HCN)	0 to 50 ppm
AMMONIA (NH₃)	100 ppm
PHOSPHINE (PH₃)	20 ppm
CHLORINE (CL₂)	0 to 50 ppm
NITROGEN DIOXIDE (NO₂)	0 to 50 ppm
