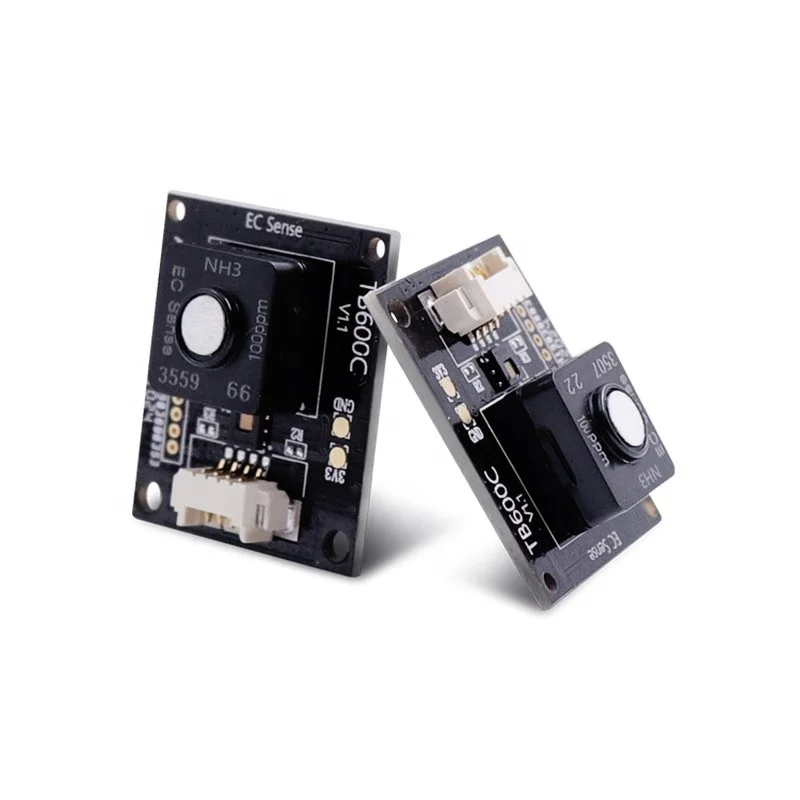

TB600B-NH3-100 Ammonia Gas Module 01-ES1-NH3-100-01 NH3 gas analyser

Inquiry

Overview
Resources
Related Products

Product Description

Part Number

01-ES1-NH3-100-01

Features

1.Non-consumable long-life design, can be used stably in long-term exposure to ammonia concentration environment
2.Resistant to high humidity applications, can be used stably in a high humidityenvironment above 85% for a long time
3.Wide temperature range from -40 to 55°C
4.Anti-interference, can achieve high-precision measurement in complex gas environment
5.Independent temperature and humidity digital sensors output, combined
with intelligent algorithms, stronger environmental adaptability
6.Fast response, fast return to zero, plug and play
7.Easy to use, UART digital signal output, zero drift
8.Durable and reliable, long lifetime and stable detection
9.New microcircuit design, strong anti-electromagnetic interference ability,good anti-toxicity
10.With fixed mounting holes for easy installation
11.Low power consumption and sleeping mode (suitable for and IoT applications)
12.RoHS approved eco-friendly design

Typical applications

General Industry
Livestock House
Toilet and Smell Detection
Indoor Air Quality Monitoring

Outdoor Air Quality Monitoring
Leakage Detection
Emissions

tb600b nh3 100 ammonia gas module 01 es1 nh3 100 01 nh3 gas analyser-1

Specification

》》Technical Specifications
Performance
Sensitivity			40 nA/ppm ± 10nA/ppm
Zero Current			± 100nA
Range			0-100ppm
Maximum Overload			200ppm
Resolution (16Bit ADC)			0.1ppm

Response Time			Please see Note3
Repeatability			< 2%
Output Linearity			Linear
Environment

Operating Temperature Range			-40 to +55℃
Operating Humidity Range			15-95%RH. Non-condensing
Operating Pressure Range			Atmospheric pressure ± 10%
Storage Temperature			0 to 20℃
Operation

Operating Principle			Amperometric

Bias Voltage			0 mV
Recommended Load Resistor			100
Warm Up Time			< 5min
Lifetime

Long-Term Drift			< 10% of measured value per year
Expected Lifetime			2 years in air
Storage Life			12 months
Warranty			12 months
Housing
Housing Material			PPO
Weight			< 0.7g
