Real-time Air Quality Monitors Portable Multi Gas Detectors S-300/sensor Head for Optional Configuration Gas Leak Detector 0-5V

Inquiry

Product Description

Aeroqual’s portable air quality monitors are tools for air quality professionals and enthusiasts alike to gather

real-time information on the surrounding air. They are a flexible air quality monitoring solution that can be

configured with 28 different gas sensors and particle sensor for a range of uses from environmental monitoring to industrial applications.

What can it measure?

• Criteria pollutants (WHO, EPA, EU)

• Indoor pollutants

• Industrial gases

• Particulate matter (PM

• Temperature and Relative Humidity

what can it be used for?

• Short term air quality studies

• Checks on pollution “hot spots”

• Site air quality surveys

• Personal exposure assessments

• Short term fixed monitoring

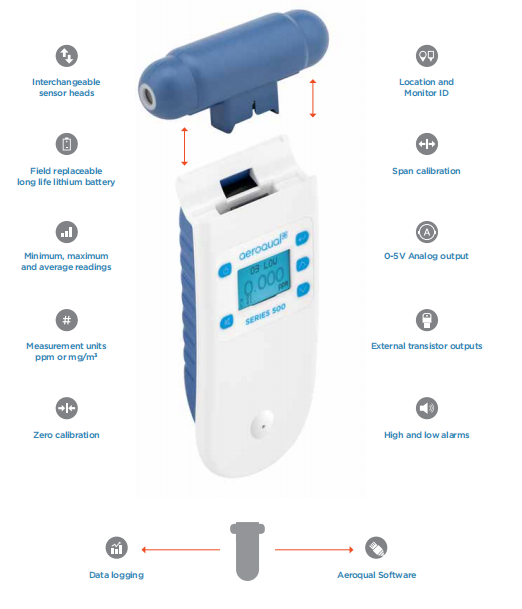

specification

Portable monitor system specifications		Series 200	Series 300	Series500
Measurement units	Gas:ppm or mg/m³ \|Humidity:%\|TemperatureCorF	√	√	√
Reading functions	Instantminimum,maximum,average	√	√	√
Sensor head	Active fan sampling to ensure high accuracy measurements,interchangeable,replaceable	√	√	√
Sensor head calibration	Zero and span calibration	Zero Only	√	√
Temperature&humidity sensor	Range -40℃ to 124℃(-40°F to 255°F);Range O to 100%RH	√	√	√
Environmental operating conditions	Temperature:-5°℃ to 45°℃\|Humidity:O to 95% non-condensing	√	√	√
Display status indicators	Battery,sensor,standby	√	√	√
Power supply	12Vde(power adaptor/charger supplied 100-250Vac)	√	√	√
Rechargeable battery	Lithium-ion 12Vdc 2700 mA.h	√	√	√
Enclosure material and rating	PC and ABS;IP20 and NEMA 1equivalent	√	√	√
Size	(L×Wx D)195×122×54(mm);7%x4%x2%(in) (with sensor head)	√	√	√
Weight	<460g;<16oz(with sensor head and battery)	√	√	√
Approvals	Part 15 of FCC Rules;EN50082-1:1997;EN 50081-1:1992	√	√	√
Analog output	0-5V		√	√
Clock function	Rea time			√
Digital interface	RS-232 to USB			√
Data logging	Up to 8,188 records (2706 incl.Temp/RH)			√
PC data logging(Windows)	Software and data cable suppied.Link data to a specific location and monitor.			√
