DT-2025 Large Flow Low Concentration Smoke and Flue Gas Measuring Instruments High Precision O2 SO2 NO NO2 CO Flue Gas Analyzer

Inquiry

Overview
Resources
Related Products

Product Description

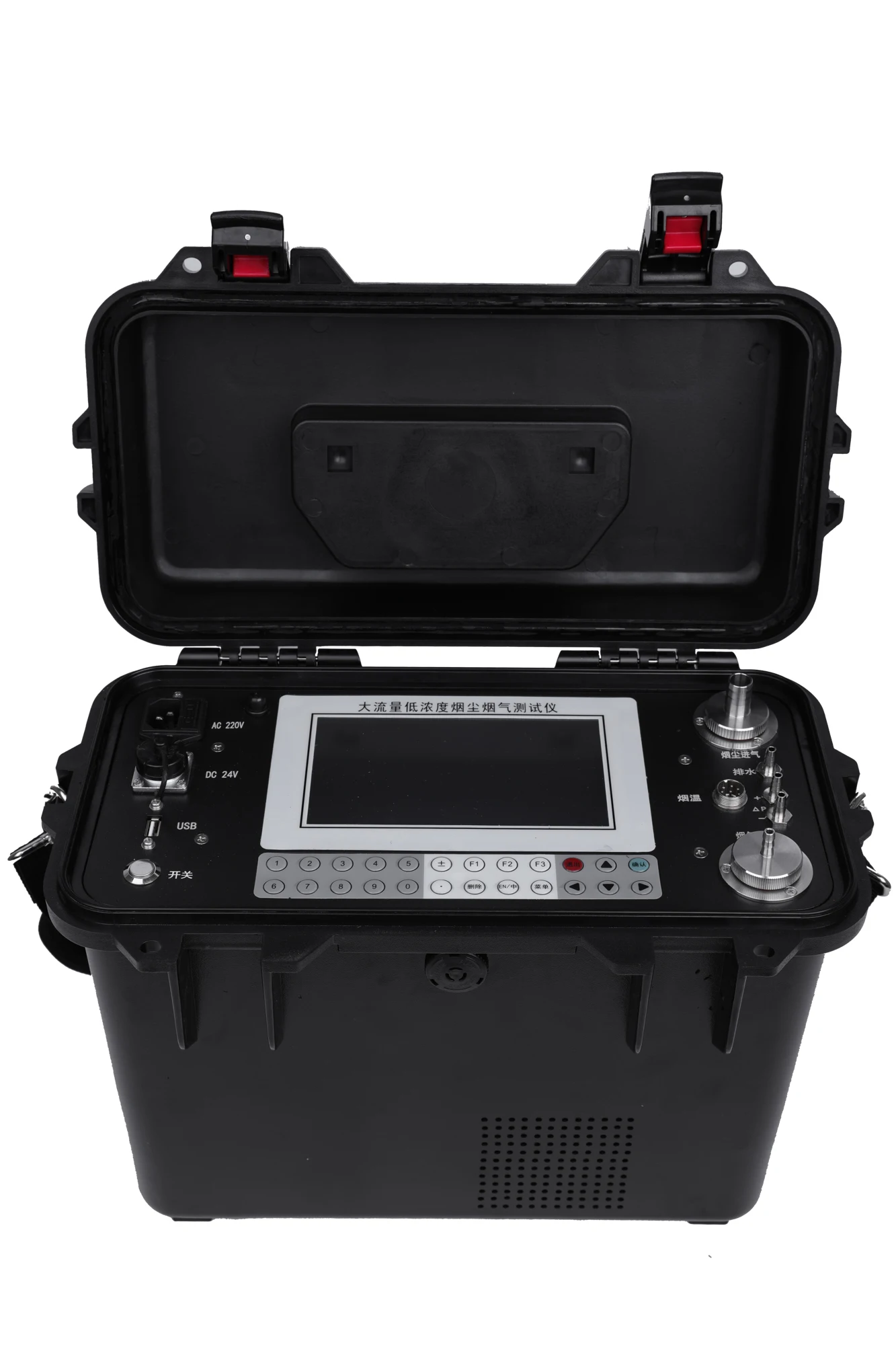

he DT-2025 large flow low concentration smoke and flue gas tester is a new generation of smoke and flue gas tester developed by our company.

This instrument uses the Pitot tube parallel isokinetic sampling method to collect particulate matter in the exhaust gas of stationary pollution sources,

determines the mass of smoke and dust by the filtration and weighing method, and qualitatively and quantitatively determines the components of flue

gas by the constant potential electrolysis method. It ensures the reliability of the instrument, improves the stability of the system, and enhances

the accuracy of control. It can be used to measure the emission concentration, conversion concentration, and total emission of particulate matter

from various boilers, flue ducts, industrial furnaces, and other stationary pollution sources, as well as the dust removal and desulfurization

efficiency of equipment; it can automatically measure parameters such as flue gas dynamic pressure, flue gas static pressure,

flow velocity,ressure before the flowmeter, temperature before the flowmeter, flue gastemperature, moisture content,

O2, SO2, CO, NO, NO2, H2S, and CO2 concentration.

Main application

The instrument is widely used in environmental testing companies, industrial and mining enterprises, power plants, steel mills,

cement plants, sugar mills, paper mills, smelters, ceramic factories, boiler furnaces, as well as aluminum, magnesium, zinc,

titanium, silicon, pharmaceutical industries, including chemical fertilizers, chemicals, rubber, and material factories, and in the fields

of health, labor, safety supervision, military, scientific research, and education.

Characteristics

1.7.0-inch wide-temperature and high-brightness touch screen, supporting both touch and button operations;

2.With the function of automatic correction of CO to SO2, meeting the requirements of the standard HJ 57-2017;

3.The instrument host can complete the determination of particulate matter with a concentration lower than 20 mg/m3

in the exhaust gas of stationary pollution sources;

4.The electronic flowmeter automatically and accurately controls the flow and automatically compensates for the

flow change caused by voltage fluctuation, resistance, and temperature change;

5.Microcomputer-controlled isokinetic tracking sampling, with a proprietary adjustment method and a fast response time;

6.Built-in lithium battery, supporting both AC and DC power supply modes. When powered by AC, sampling and charging

can be completed simultaneously;

7.Temperature compensation is made for the flow error caused by temperature change to ensure the accuracy of measurement;

8.Precision sampling pump, corrosion-resistant, with a smoke and dust flow rate of up to 100 L/min and a flue gas flow rate of up

to 1 L/min, continuous operation without maintenance, suitable for various working conditions, and with overload protection function;

9.Supporting Chinese pinyin input, automatically memorizing the flue duct working condition configuration information for easy

retrieval and use in the later stage;

10.Supporting USB data export and Bluetooth printing functions. USB data export supports Excel and TXT two formats;

11.Real-time recording of the working status data of the equipment, with the function of power failure memory during the sampling process;

12.Equipped with a high-speed and low-noise miniature thermal printer, making it easy to grasp the real-time data.

Specification

1.Key Parameters

MainParameters	ParameterRange	Resolution	Accuracy
SmokeandDustSampling	(10～100)L/min	0.1L/min	betterthan±2.5%

Flow
FlueGasDynamic	(0～4000)Pa	1Pa	betterthan±2.0%

Pressure
FlueGasStaticPressure	(-35～35)kPa	0.01kPa	betterthan±2.5%
PressureBeforeFlowmeter	(-100～10)kPa	0.01kPa	betterthan±2.5%
TemperatureBefore	(-55～125)℃	0.01kPa	betterthan±2.0%

Flowmeter
FlueGasTemperature	(0～400)℃	0.1℃	betterthan±2.5%
FlowVelocity	(5～45)m/s	0.1m/s	betterthan±5.0%
Dry/WetBulb	(0～125)℃	0.1℃	betterthan±1.5%

Temperature
AtmosphericPressure	(60～120)kPa	0.1kPa	betterthan±0.5kPa
MaximumSampling	999999.9L	0.1L	betterthan±2.5%

Volume
DataStorageCapacity	＞100000groups
IsokineticTracking	Notmorethan20s

ResponseTime
SamplingPumpLoad	≥60L/min(whentheresistanceis20kPa)

Capacity
WorkingPowerSupply	AC（220±22）V50Hz
ContinuousWorkingTime	＞6h
Noise	＜80dB(A)
PowerConsumption	＜180W
OverallWeight	About10Kg
LengthWidthHeight(mm)	420240320

2.Flue Gas Parameters

MainParameters	ParameterRange	Resolution	Accuracy
SmokeandDustSampling	(10～100)L/min	0.1L/min	betterthan±2.5%

Flow
FlueGasDynamic	(0～4000)Pa	1Pa	betterthan±2.0%

Pressure
FlueGasStaticPressure	(-35～35)kPa	0.01kPa	betterthan±2.5%
PressureBeforeFlowmeter	(-100～10)kPa	0.01kPa	betterthan±2.5%
TemperatureBefore	(-55～125)℃	0.01kPa	betterthan±2.0%

Flowmeter
FlueGasTemperature	(0～400)℃	0.1℃	betterthan±2.5%
FlowVelocity	(5～45)m/s	0.1m/s	betterthan±5.0%
Dry/WetBulb	(0～125)℃	0.1℃	betterthan±1.5%

Temperature
AtmosphericPressure	(60～120)kPa	0.1kPa	betterthan±0.5kPa
MaximumSampling	999999.9L	0.1L	betterthan±2.5%

Volume
DataStorageCapacity	＞100000groups
IsokineticTracking	Notmorethan20s

ResponseTime
SamplingPumpLoad	≥60L/min(whentheresistanceis20kPa)

Capacity
WorkingPowerSupply	AC（220±22）V50Hz
ContinuousWorkingTime	＞6h
Noise	＜80dB(A)
PowerConsumption	＜180W
OverallWeight	About10Kg
LengthWidthHeight	420240320

(mm)

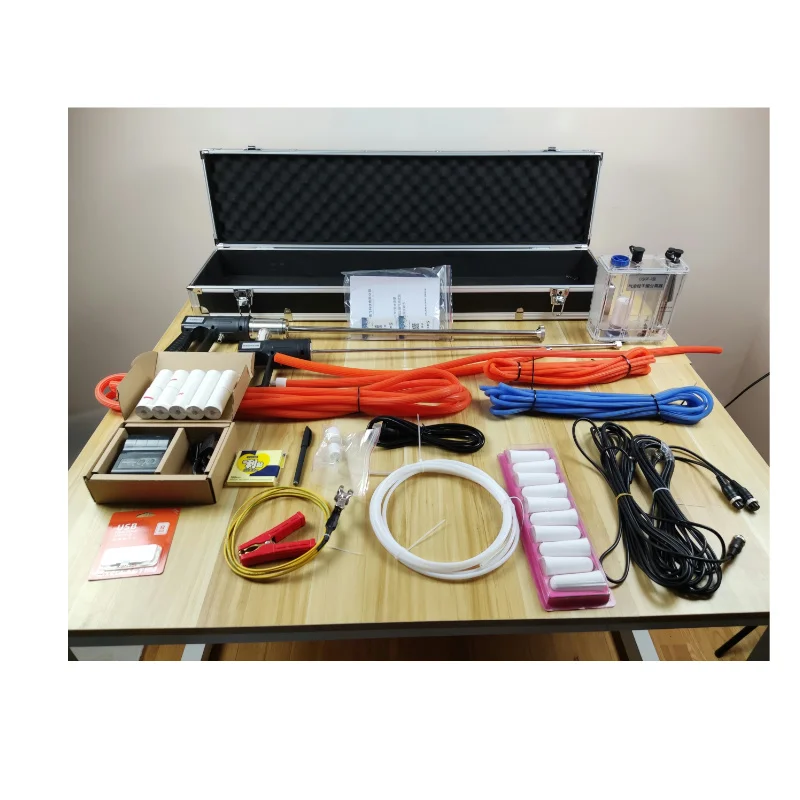

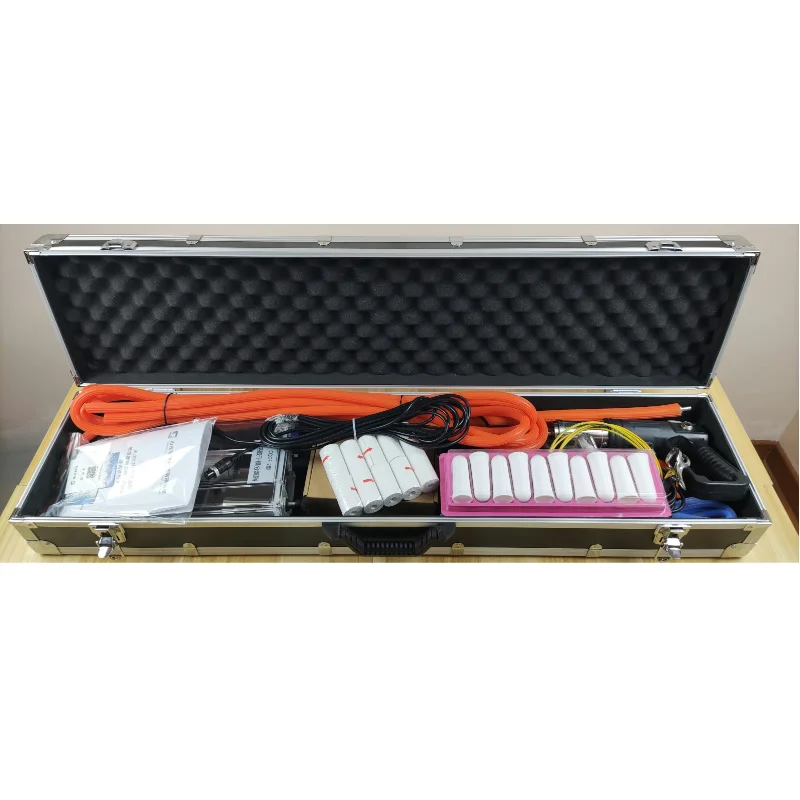

3.Configuration List

Serial	Name	Specification	Unit	Quanti	Remarks

Number				ty
1	InstrumentHost	DT-2025	Unit	1	Built-inlithium

					battery
2	HeatedLowConcentrationSmokeand	DT-3051	Root	1

	DustSamplingTube
3	MoistureContentSamplingTube	DT-3056	Root	1
4	OrdinaryFlueGasSamplingTube	DT-3055	Root	1
5	PolytetrafluoroethyleneTube	φ4*6	Root	1	6meters
6	PowerCord	/	Root	1
7	ShoulderStrap		Piece	1
8	StickyNotes	/	Copy	1
9	BlackGelPen	/	Piece	1
10	BluetoothPrinter		Piece	1
11	PrintingPaper		Roll	10
12	UDisk		Unit	1
13	StaticGroundingWire	/	Root	1
14	FlueGasTemperatureWire	/	Root	1
15	Steam-WaterSeparator	/	Unit	1
16	OrangeandBlueRubberTubes	φ4*8	Root	2	Oneofeach

					color,6meters

17	OrangeRubberTube	φ8*14	Root	1	6meters
18	OrangeRubberTube	φ8*14	Root	1	1meters
19	OrangeRubberTube	φ12*20	Root	1	0.5meters
20	Adapter	/	Piece	1
21	One-WayValve	/	Piece	1
22	AccessoryBox	/	Piece	1
23	FactoryInspectionReport		Copy	1
24	InstructionManual	/	Copy	1
25	CertificateofConformity	/	Copy	1
26	WarrantyCard	/	Copy	1
27	PackingList	/	Copy	1
28	MultifunctionalSmokeandDust	DT-3057	Root	1	Optional

	SamplingTube
29	HeatedSamplingTube	DT-3059	Root	1	Optional
30	IntelligentFlueGasPreprocessor	DT-3059A	Root	1	Optional
