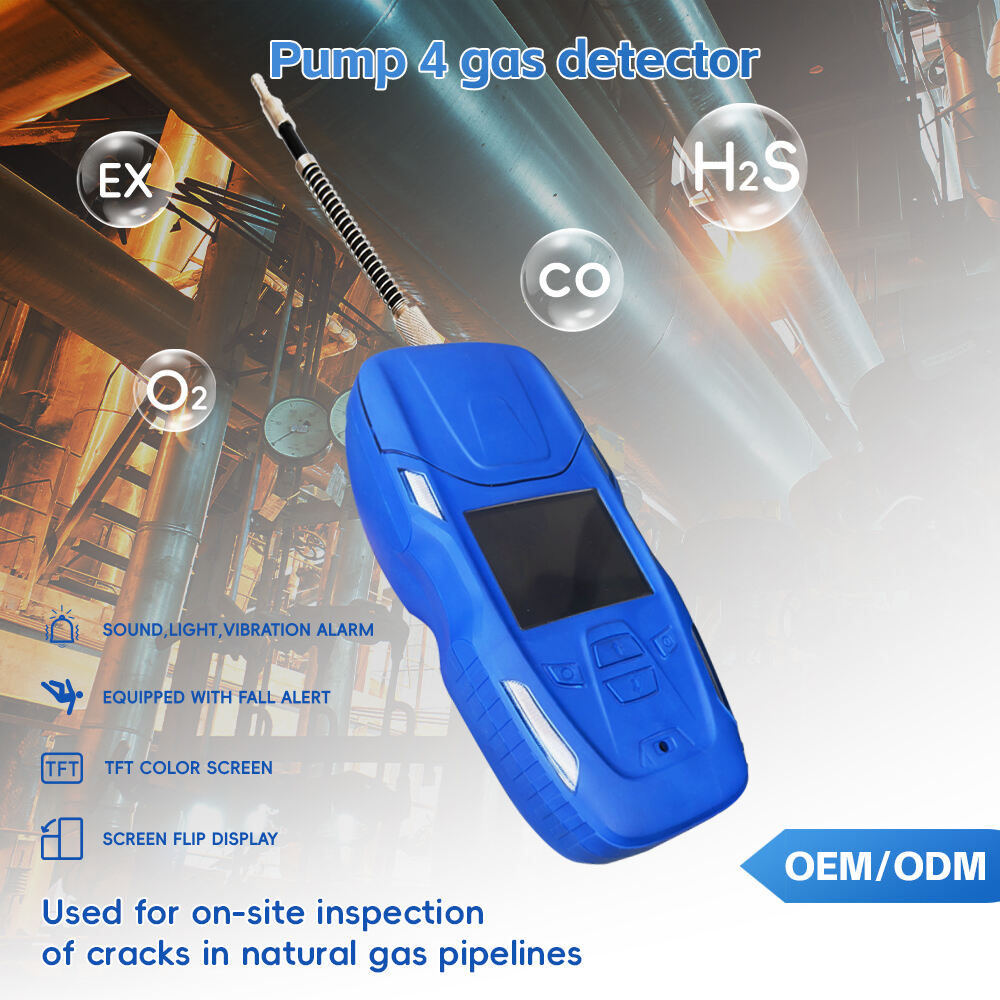

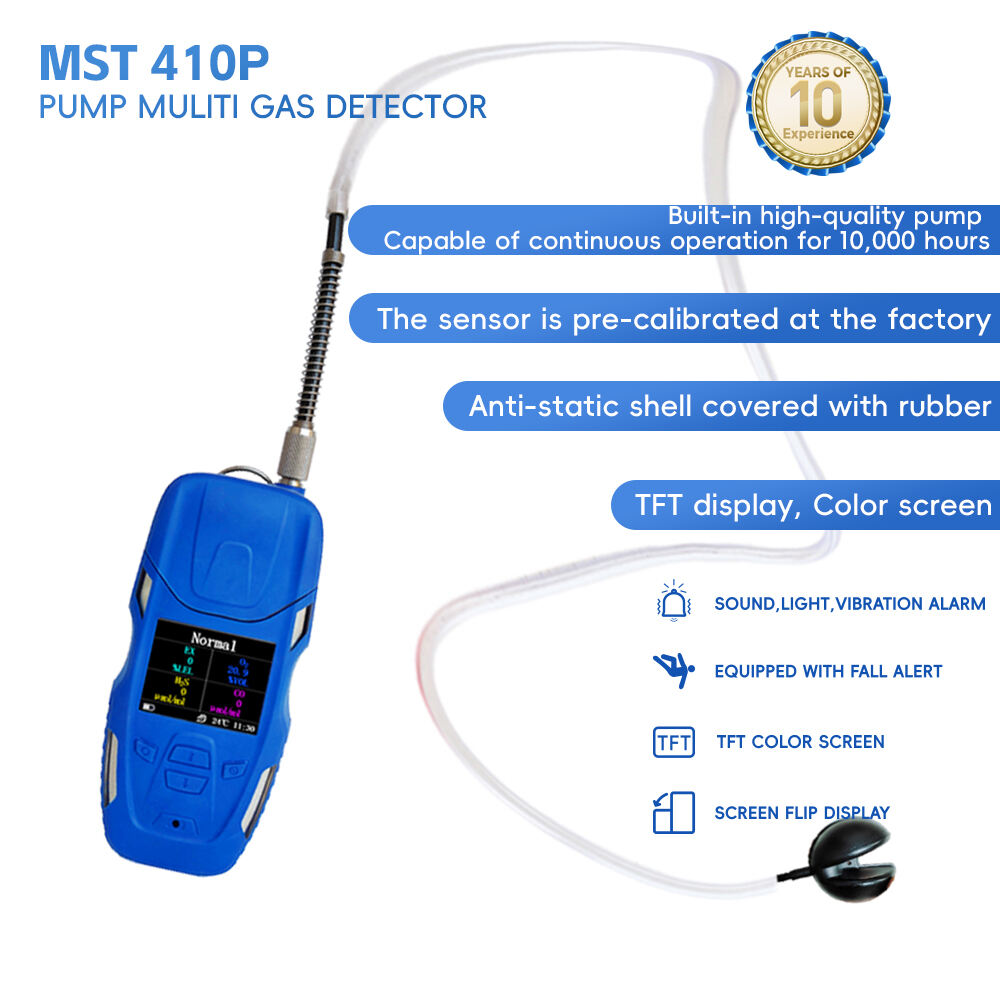

MST410P Portable gas analyzer
MST410p portable gas detection can continuously detect multi-gas concentration. It has color TFT display, high decibel buzzers, alarm lights and vibrations . The alarm can be equipped with a wireless module to realize remote data transmission and personnel location functions.MST410P is a pump type gas detector that can continuously detect the concentration of multiple gases for personal protection. The color TFT screen displays the concentration of the detected gas and other information. High decibel buzzers, alarm lights and vibrations can alert that the current gas concentration has exceeded the set alarm point. Especially, The detector uses smart sensors, which are easy to change and maintain, and it has built-in program to reach many functions, data storage and Bluetooth data transfer for optional. Otherwise, MST410P can be match with a wireless module to realize remote data transmission and personnel location functions. MST410p detector is widely used in ferrous metallurgy, petrochemical, emergency rescue, chemical production to improve life safety.
Benefits and features1.The pumping detector can also be downgraded for use as a diffusion detector
2.It has the function of blocking pump detection, which can effectively prevent foreign matter from blocking the air pump
3.Up to 4 kinds of gas can be freely selected.

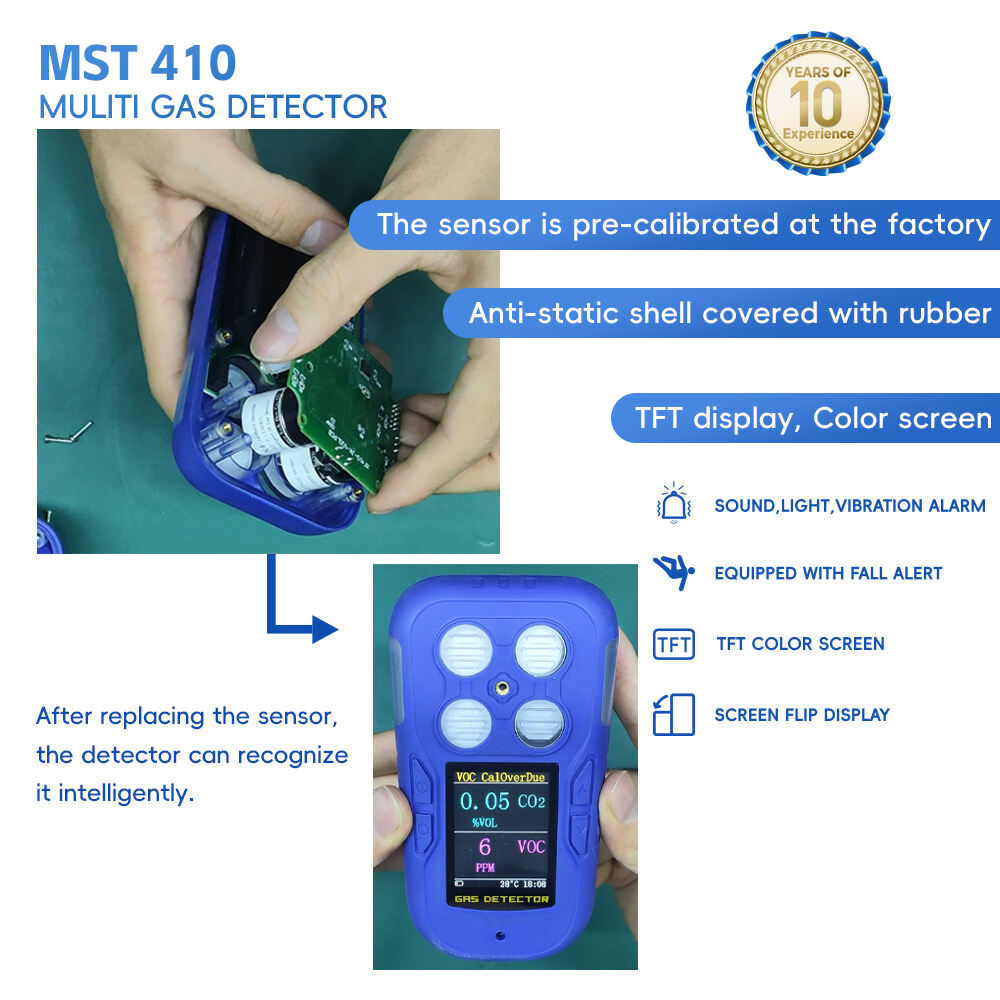

4.The sensors can be inserted in any position, it’s easy to maintenance.

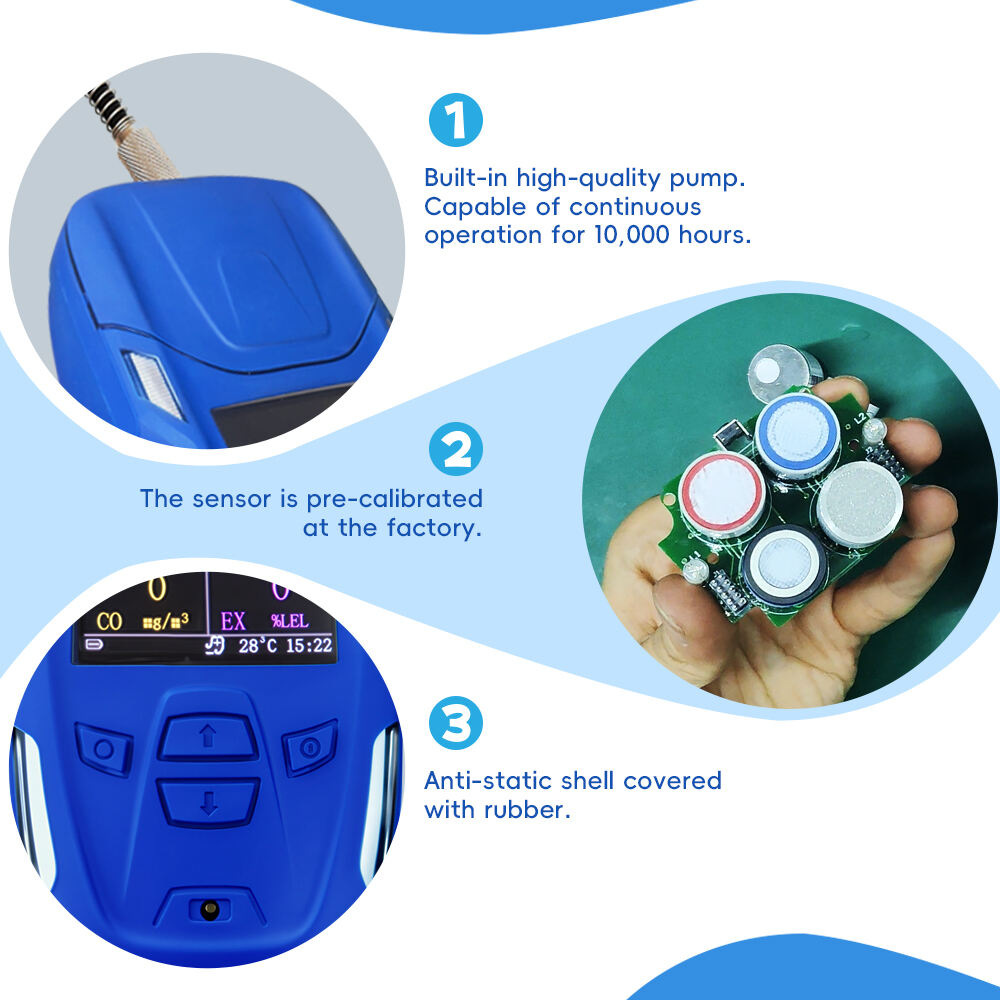

5.The accessories sensors can be used by users without calibration, because the smart sensors has been calibrated by us
6.Optional wireless module for remote data transmission and personnel location.
7.Fall alarm function.
8.The content of the screen can be turned upside down.
9.With event recording and data recording functions.
10. A color TFT display continuously displays gas concentrations in real time.
Technical parameter
| Batteryparameters | Ratedvoltage3.7V |
| Nnominalcapacity5200mAh | |
| Working current | Normalcurrent:≤150mA(whenthescreenisoff) |
| Alarmcurrent:≤270mA | |
| Explosion-proof grade | ExibIICT4Gb |
| II1GExiaIICT4Ga | |
| 2014/30/EU(ElectromagneticCompatibility) | |
| Sensor type | Combustiblegas:catalyticorNDIR(Non-DispersiveInfrared) |
| CO2:NDIR(Non-DispersiveInfrared) | |
| O2:Electrochemistry | |
| Toxigases:CO,H2S,NH3,CL2,NO2,HCN,PH3,O2,HCL,HF,SO2...:Electrochemistry | |
| Detection method | Pump |
| Response time | Combustiblegas:T90<30s |
| Oxygen:T90<30s | |
| Toxicgas:(Thereisaresponsewithinfollowingtime) | |
| Ammonia,hydrocyanicacid<120s.Phosphine,Chlorine<60s.Othertoxicgas<30s | |
| Continuous working time off full charge | ≥15hours |
| Accuracy | CO:±10% |
| H2S:±10% | |
| LEL:±5%FS | |
| O2:±3.0%FS | |
| Othertoxicgases:±10%(displayedvalue)or±5%(fullscale)withinthemaximum | |
| Datalog&events | 1660pcsdatalog+999pcsevents |
| Working environment | Temperature:-20℃~55℃ |
| Relativehumidity:0%~95%,nocondensation | |
| Storage environment | Temperature:-40℃~55℃ |
| Relativehumidity≤90%,nocondensation | |
| Charging temperature range | 0℃~40℃ |
| Implementation standards | GB12358-2006,GB/T3836.1-2021,GB/T3836.4-2021 |
| Shell material | ABS,PC,antistaticTPE |
| Overall dimension | 161mm×76mm×57mm(includingbackclipthickness) |
| Weight | About450g |
|
Gas type |
Range |
carbon monoxide(CO) |
0-2000ppm |
hydrogen sulfide(H2S) |
0-100ppm |
oxygen(O2) |
0-30.0%vol |
combustible gas(LEL) |
0-100%LEL |
ammonia(NH3) |
0-100ppm |
chlorine(CL2) |
0-10.0ppm |
hydrocyanic acid(HCN) |
0-30.0ppm |
nitrogen dioxide(NO2) |
0-100.0ppm |
phosphine(PH3) |
0-10.0ppm |
hydrogen(H2) |
0-1000ppm |
sulfur dioxide(SO2) |
0-100ppm |
hydrogen fluoride(HF) |
0-10.0ppm |
hydrogen chloride(HCL) |
0-20.0ppm |
