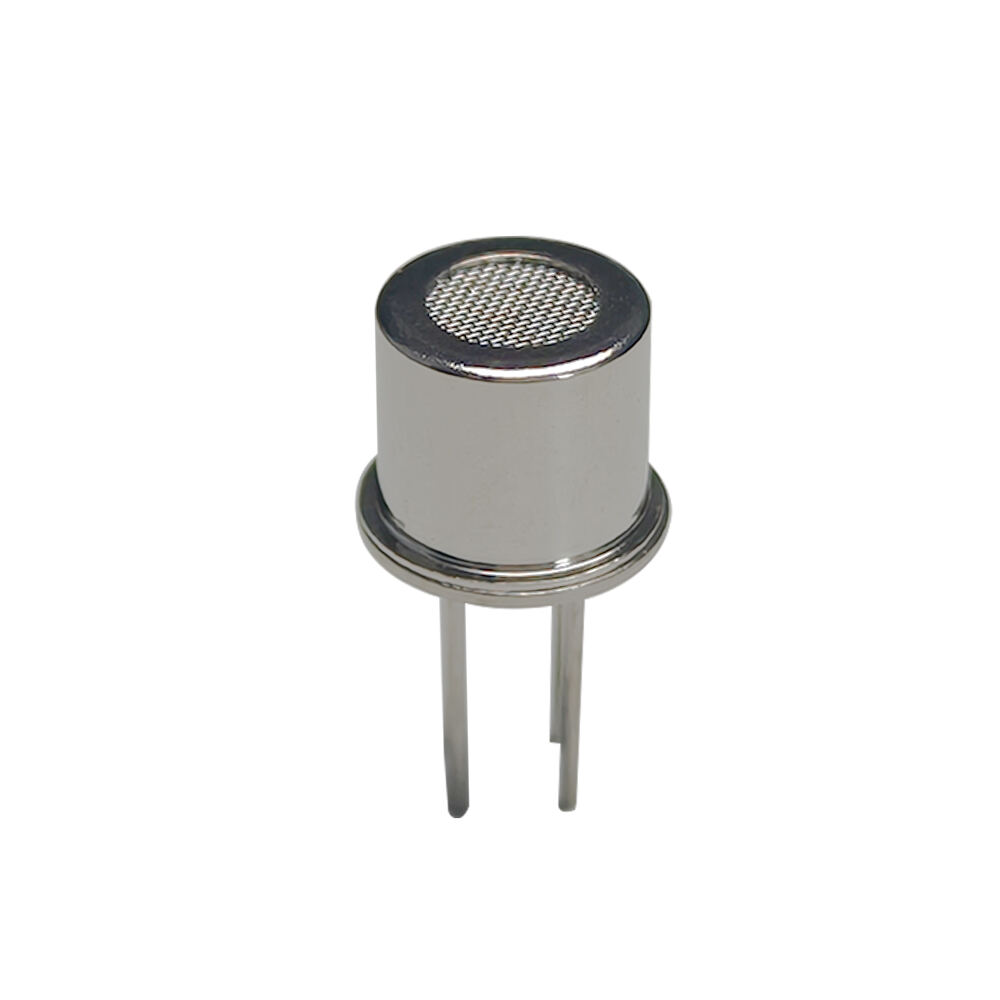

MST136 air quality (odor) sensor has the advantages of high sensitivity, low cost, long life and low power consumption. It is a broad spectrum gas sensor with high sensitivity to many trace reduction gases (or micro-toxic gas molecules). These gas molecules include, Ammonia, hydrogen, alcohol, carbon monoxide, methane, propane, glycerine, styrene, propylene glycol, phenol, toluene, ethylbenzene, xylene, formaldehyde and other organic volatile gases, cigarette, wood, paper burning smoke, soot, etc.
MST136 type air quality (odor) sensor belongs to metal oxide planar semiconductor sensor, which is made of nano SnO2 powder and catalyst doping and sintering. When there is a trace of reducing pollution gas in the air, the conductivity of the sensor will increase. The change of conductance increases with the increase of pollution gas concentration. By the amount of conductivity change, the sensor can sense the degree of air pollution. For example, when there is a second-hand smoke or cosmetics volatile molecules, the sensor can produce conductivity changes. Using this sensitive characteristic of the sensor, and then through the simple single chip microcomputer control, we can realize the intelligent start of exhaust ventilation equipment, so as to achieve the effect of intelligent indoor air purification.
MST136 type air quality (odor) sensor has a very wide range of applications, such as family, hospital, dinner/hotel, conference room, reception room, hotel, car/train station waiting hall, chess room, club, etc. These occasions will often appear formaldehyde, second-hand smoke, alcohol and other air pollutants, in this case, the intelligent air purification system can automatically start. It can also be widely applied to the Internet of Things to sense the air quality status of a certain space in the Internet of Things and realize the air quality monitoring within the scope of the Internet of Things.
Features:
| Model number | MST136 | |||
| Packaging standard | Metal TO-05 | |||
| Detection gas | Hydrogen,alcohol,smoke,etc | |||
| Detection range | 0-200PPM(alcohol)0-10PPM(formaldehyde) 0-10000PPM(natural gas)0-4000PPM(Hydrogen) |
|||
| Standard loop | Heating voltage | VH | 5.0±0.2V DCIAC | |
| Component characteristics under standard test conditions |
Heating voltage | VH | 5.0±0.2VDC | Ps≤15mW |
| Loop voltage | Vc | Adjustable | Ps≤15mW | |
| Load resistance | RL | 85Ω±10Ω(room temperature) | ||
| Heater resistance | RH | 55mA±5mA | ||
| Heating sheet current | Ia | 260mW±10mW | ||
| Sensitivity change | >0.5V | 10PPM(ethanol) | ||
| Under standard test conditions |
Temperature and humidity | 20±2℃,65±5%RH | ||
| Preheating time | No less than 24hours | |||
| Response time | ≤30s | |||
| Desorption time | ≤60s | |||
